Entity-Relationship Model

约 2183 个字 -44 行代码 21 张图片 预计阅读时间 7 分钟

Outline:

  • Database Design Process
  • Modeling
  • Constraints
  • Weak Entity Sets
  • Reduction to Relation Schemas
  • Design Issues
  • Extended E-R Features
  • UML

Database Design Process

E-R Diagram for a University Enterprise

本节课最核心的就是这张图片，我们将围绕这张图片讲述 E-R 模型的相关内容，同时学习如何把 E-R 模型转换为关系模式。

Important

  • 一个方框代表一个实体，一个菱形代表一个关系
  • 实体有属性，有下划线标出 primary key

实体与实体之间有关系，中间用线连接起来。根据线的种类，箭头有无，可以把关系分类。

比如 instructor 和 department 之间有 inst_dept 关系，instructor 指向 department 的线有箭头，代表一个老师只能对应一个系；而 department 指向 instructor 的线没有箭头，代表一个系可以对应多个老师。

还可以观察到有的线是双横线，有的是单横线。双横线代表所有的对象都必须参与关系，而单横线代表不一定所有的对象都要参与关系。

还是 instructor 和 department 之间，instructor 有双横线连接，代表每个老师都必须有系，而 department 有单横线连接，代表不一定所有的系都有这个老师，可能有的老师只属于数学系，计算机系就没有他，但是每个老师都会属于一个系。

仔细观察还会发现，有的菱形是单横线构成的，而有的菱形则是双横线。

双横线代表与它连接的实体是弱实体(weak entity)，即这个实体中的对象必须依赖于另一个实体。就比如 section 和 course 之间，可以看到 section 中有 sec_id, semester, year 这些属性，但是这些属性并不足以唯一确定一个 section，比如 2025年春夏学期一班并不足以唯一确定一个 section，还需要有 course_id 这个属性，这样才能唯一确定一个 section。

注意，section 中的所有primary key 是用虚线标注的，而不是实线。

以上只是一个简单的导览，更详细的部分会在后边涉及。

Modeling

Entities

  • A database can be modeled as:
    • A collection of entities(用矩形表示)
    • Relationships among entities(用菱形表示)
  • Entities have attributes
    • Example: people have names and addresses

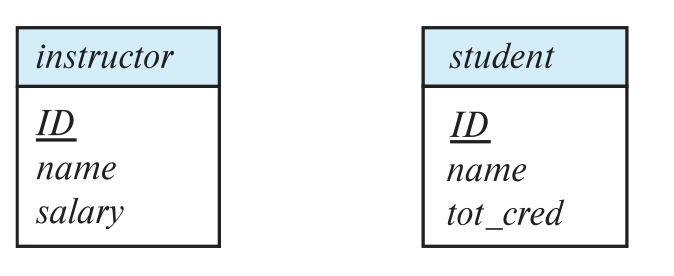

  • Entity sets can be represented graphically as follows:
    • Rectangles represent entity sets
    • Attributes listed inside entity rectangle
    • Underline indicates primary key attributes
Example

Relationship Sets

  • A relationship is an association among several entities
  • A relationship set is a mathematical relation among n \(\geq\) 2 entities, each taken from entity sets
\[ \{(e_1, e_2, \cdots , e_n) | e_1 \in E_1, e_2 \in E_2, \cdots , e_n \in E_n\} \notag \]

where \((e_1, e_2, \cdots , e_n)\) is a relationship.

Representing Relationship Sets in ER Diagrams

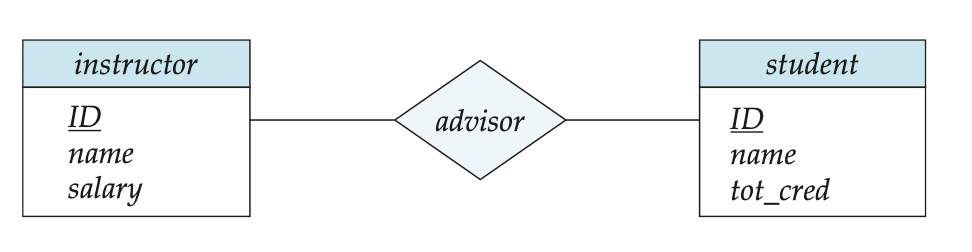

  • Diamonds represent relationship sets

Relationship Sets with Attributes

  • An attribute can also be property of a relationship set

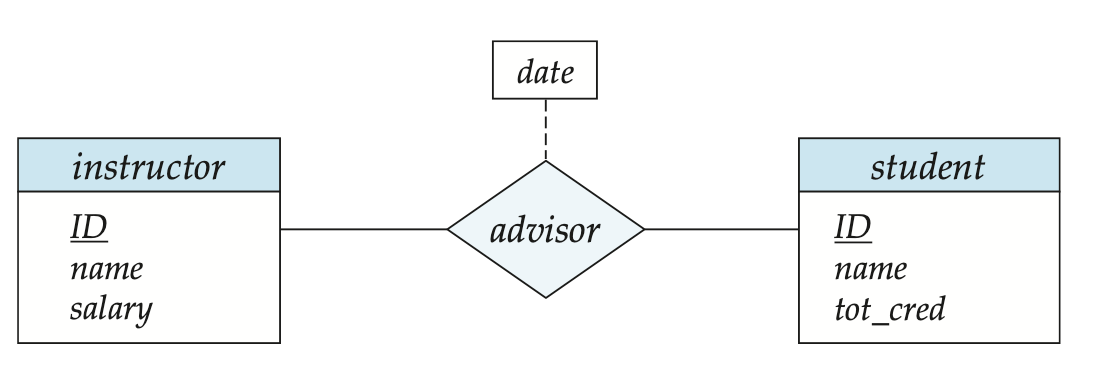

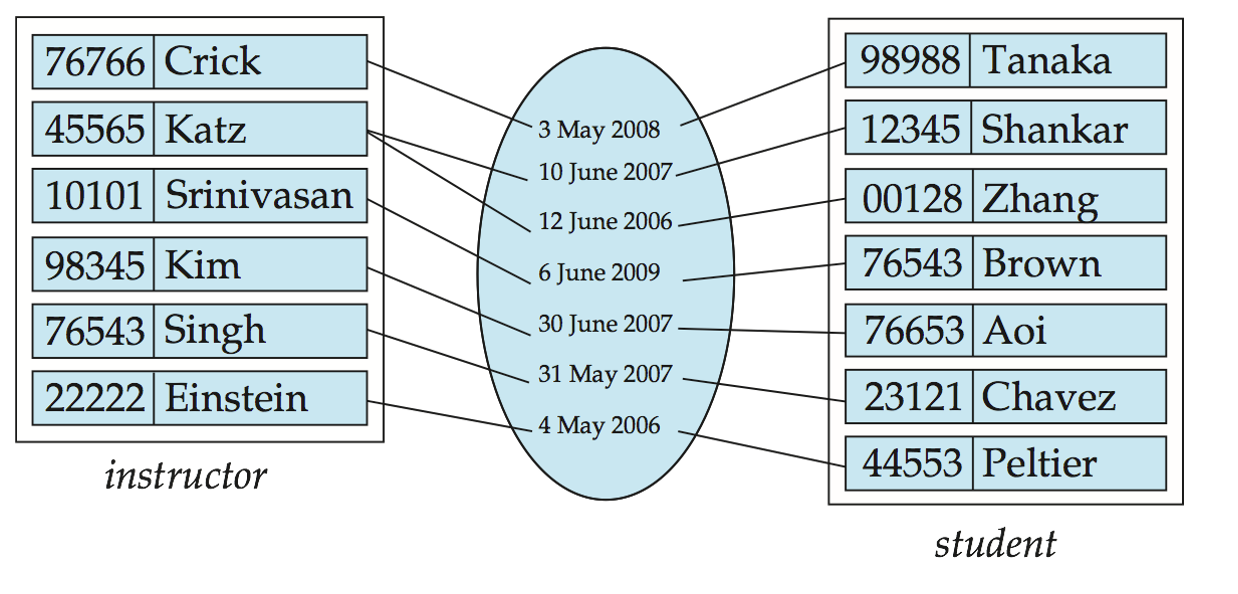

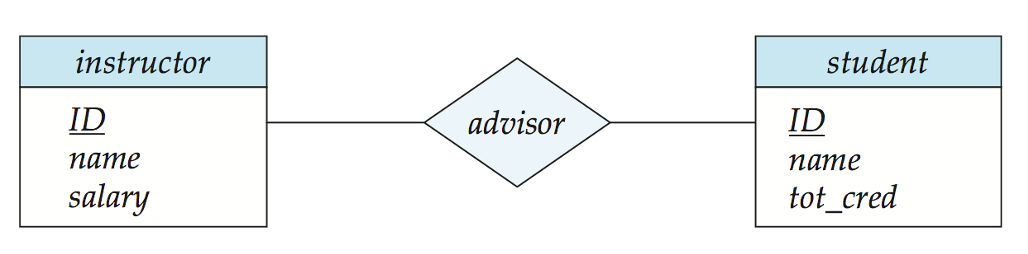

  • For instance, the advisor relationship set between entity sets instructor and student may have the attribute date which tracks when the student started being advised by the instructor

Roles

  • Entity sets of a relationship need not be distinct
    • Each occurence of an entity set plays a "role" in the relationship
  • The labels "course_id" and "preq_id" are called roles

Degree of a Relationship Set

  • Binary relationship(二元联系)
    • involve two entity sets (or degree two)
    • most relationship sets in a database system are binary
  • There are occasions when it is more convenient to represent relationships as non-binary

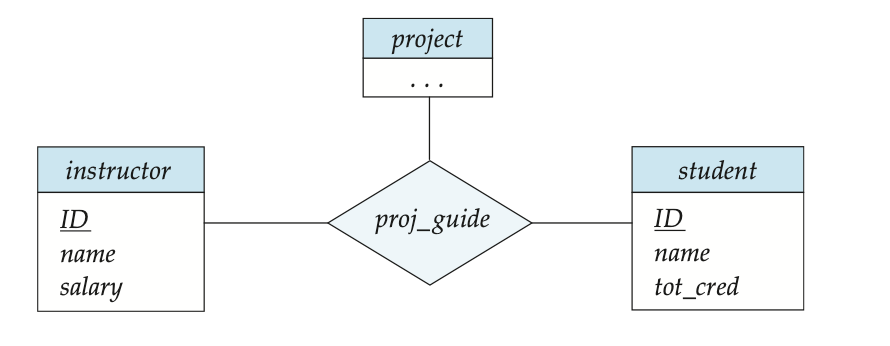

三元联系用图表示出来可能不方便，通常把三元联系拆成三个二元联系，更加清晰直观。

Attributes

  • Attribute types:
    • Simple(简单) and Composite(复合) attributes.
    • Single-valued(单值) and Multi-valued(多值) attributes.
      • Example: multivalued attribute: phone_numbers
    • Derived(派生) attributes
      • Can be computed from other attributes
      • Example: age can be derived from birthdate

Note

简单属性是指属性的值是不可再分的，比如一个人的年龄，性别等。

复合属性是指属性的值是可以再分的，比如一个人的地址，可以分成省份，城市，街道等。

单值表示一个实体只有一个属性值，比如一个人的年龄，性别等。

多值表示一个实体有多个属性值，比如一个人的电话号码，一个人可能有多个电话号码。

派生属性是指属性的值可以通过其他属性的值计算得到，比如一个人的年龄可以通过出生日期计算得到。

Constraints

Mapping Cardinality Constraints(映射基数约束)

  • Express the number of entities to which another entity can be associated via a relationship set
  • Most useful in describing binary relationship sets
  • For a binary relationship set the mapping cardinality must be one of the following types:
    • One to one
    • One to many
    • Many to one
    • Many to many

用带箭头的横线表示 "one", 用不带箭头的横线表示 "many"。就像是在导览中表示的那样。

Total and Partial Participation

  • Total participation(indicated by double line): every entity in the entity set participates in at least one relationship in the relationship set
    • 所有的实体都必须参与关系
    • 用双横线表示
  • Partial participation(indicated by single line): some entities may not participate in any relationship in the relationship set

Notation for Expressing More Complex Constraints

  • A line may have an associated minimum and maximum cardinality, shown in the form \(l .. h\), where \(l\) is the minimum and \(h\) is the maximum
    • A minimum value of 1 indicates total participation
      • 至少参加一个关系
    • A maximum value of 1 indicates that the entity participates in at most one relationship
      • 参加 0 个或 1 个关系
    • A maximum value of * indicates no limit
      • 没有限制

Example

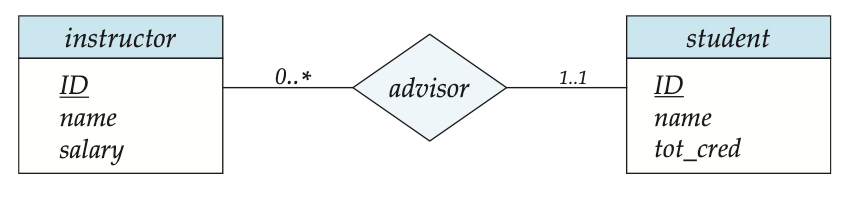

左边横线上的 \(0 .. *\) 表示一个学生可以选0门或多门课程，右边横线上的 \(1 .. 1\) 表示一个课程只能被一个学生选。

在多元关系中，为了避免混淆，我们只允许一个箭头。

Primary Key

Primary Key for Relationship Sets

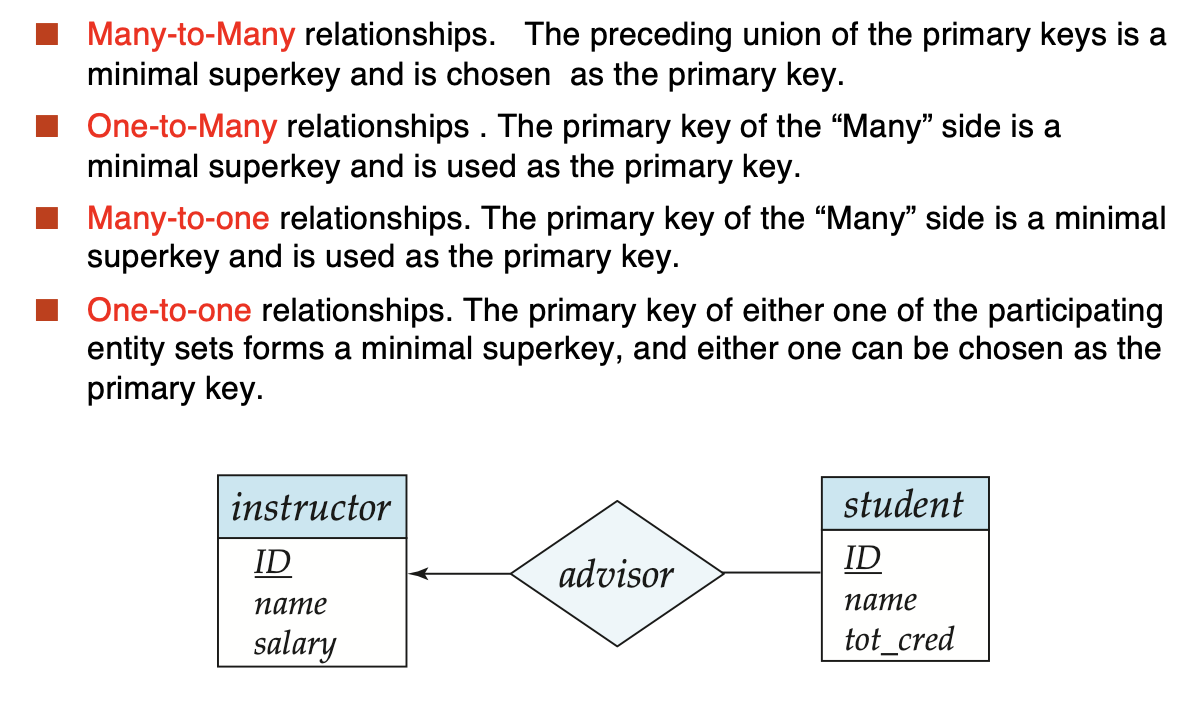

多元联系的 primary key 一般是所有 primary key 的组合；一对一联系的 primary key 一般是其中一个实体的 primary key；多对一或者一对多联系的 primary key 一般是多的一方的 primary key。

Weak Entity Sets

  • An entity set that does not have a primary key is referred to as a weak entity set
  • The existence of a weak entity set depends on the existence of a identifying entity set(标识性实体集)
    • It must relate to the identifying entity set via a total, one-to-many relationship set from the identifying to the weak entity set

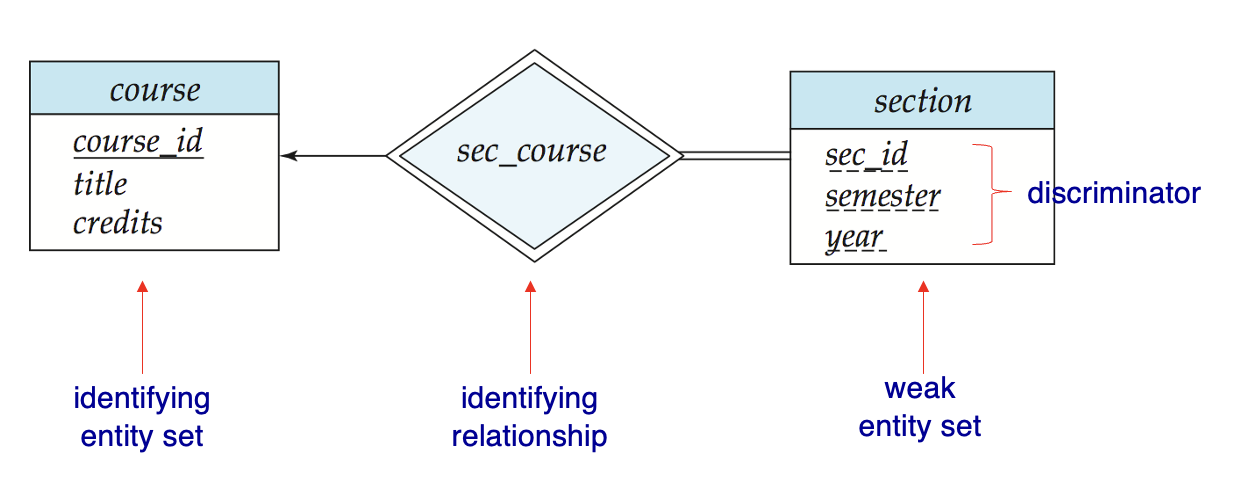

    • Identifying relationship(标识性关系) is depicted using a double diamond

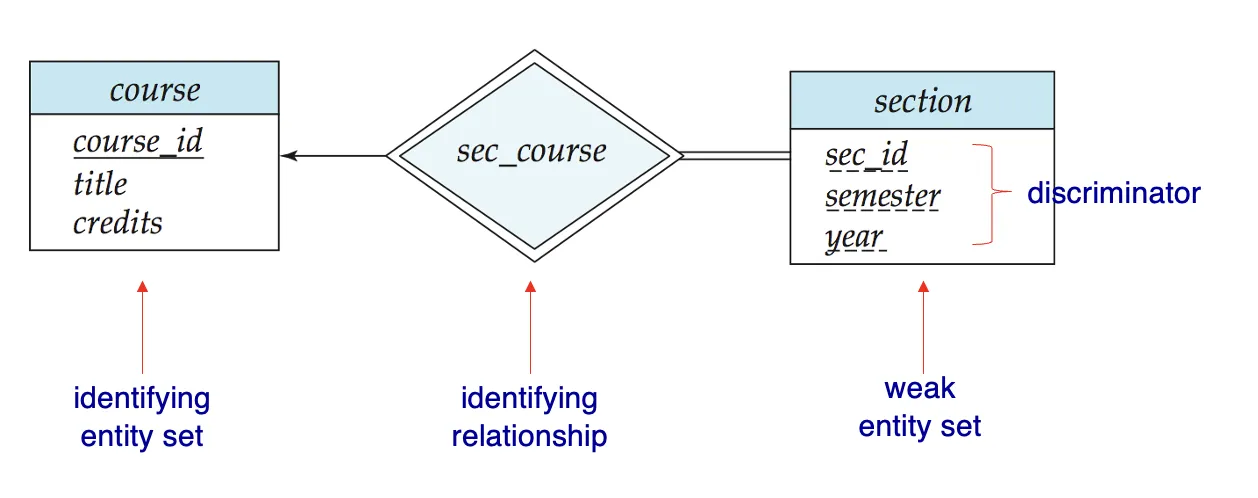

  • The discriminator(分辨符, or partial key) of a weak entity set is a set of attributes that distinguishes among all the entities of a weak entity set when the identifying entity they depend is known

弱实体的主键由弱实体的分辨符和强实体的主键构成。

Redundant Attributes

假设我们有两个实体 student, department，在 E-R 关系图中，它们之间通过 stud_dept 关系连接。如果我们在 student 实体中加入 dept_name 属性，这样就会造成冗余，因为 dept_name 已经在 department 实体中了。那么 stud_dept 关系也就没有意义了。

Reduction to Relation Schemas

我们的 E-R 图是中性的，它可以被转化成关系模式，也可以转化成面向对象的模式。

  • A strong entity set reduces to a schema with the same attribtues (course(course_id, title, credits))
  • A weak entity set becomes a table that includes a column for the primary key of the identifying strong entity set
    • Primary key of the table is the union of the discriminator of the weak entity set and the primary key of the identifying entity set
    • 弱实体的分辨符和强实体的主键
    • section(course_id, sec_id, semester, year)
  • A many-to-many relationship set is represented as a schema with attributes for the primary keys of the two participating entity sets, and any descriptive attributes of the relationship set(两个实体的主键和关系的属性)
    • advisor = (s_id, i_id)

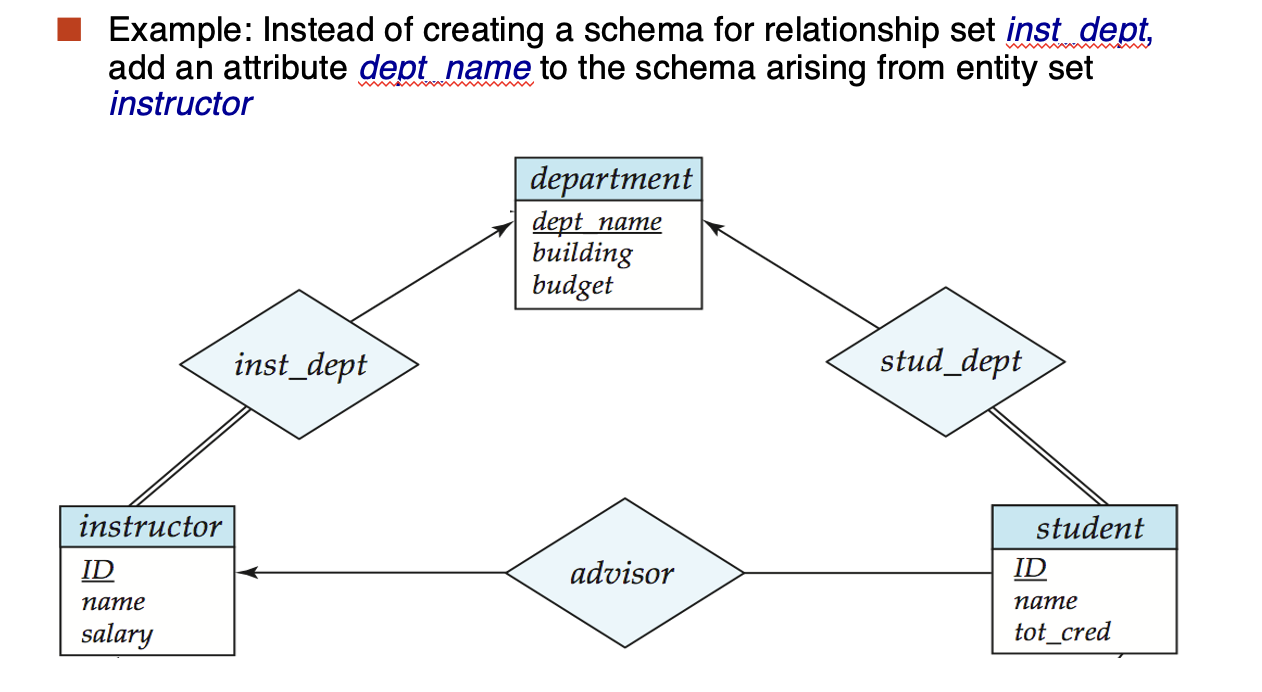

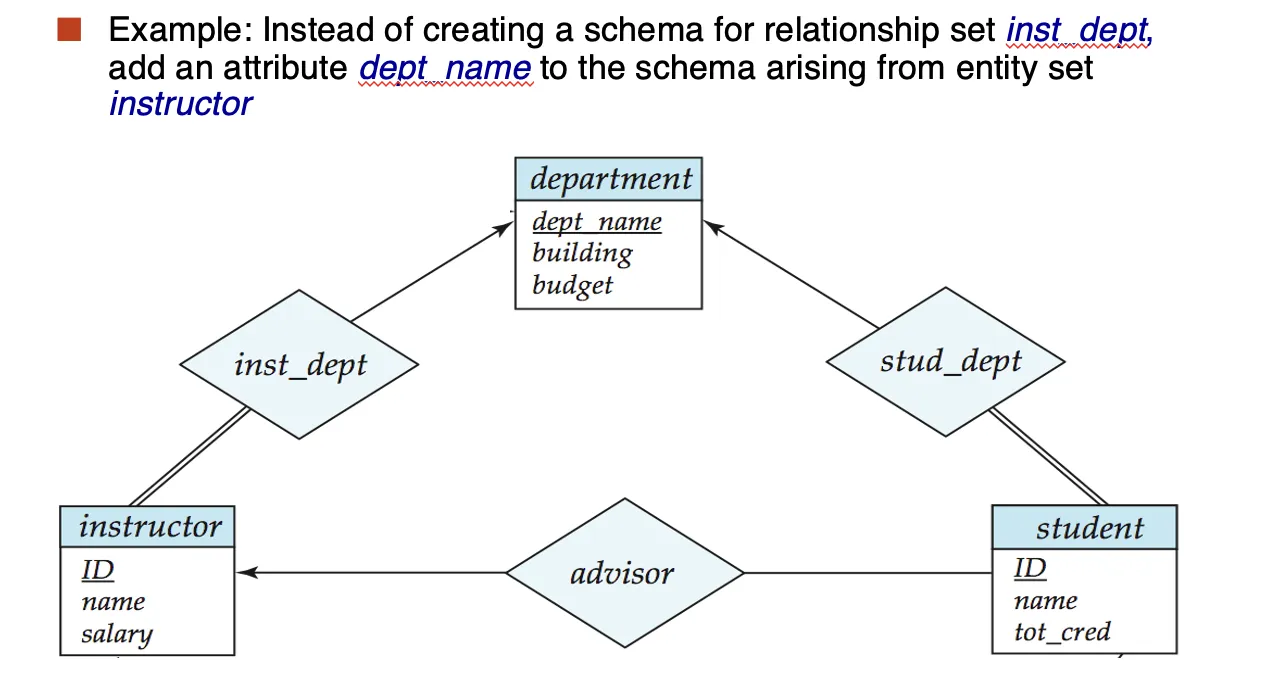

  • Many-to-one and one-to-many relationship sets that are total on the many-side can be represented by adding an extra attribute to the "many" side, containing the primary key of the "one" side.
    • 多对一不能转化为关系模式，因为多的一方的主键不是唯一的，直接在“多”的那个表上加上“一”的主键就可以了

转换前：


deparement(dept_name, building, budget)
instructor(ID, name, salary)
inst_dept(ID, dept_name)

转换后：


deparement(dept_name, building, budget)
instructor(ID, name, salary, dept_name)

Composite and Multivalued Attributes

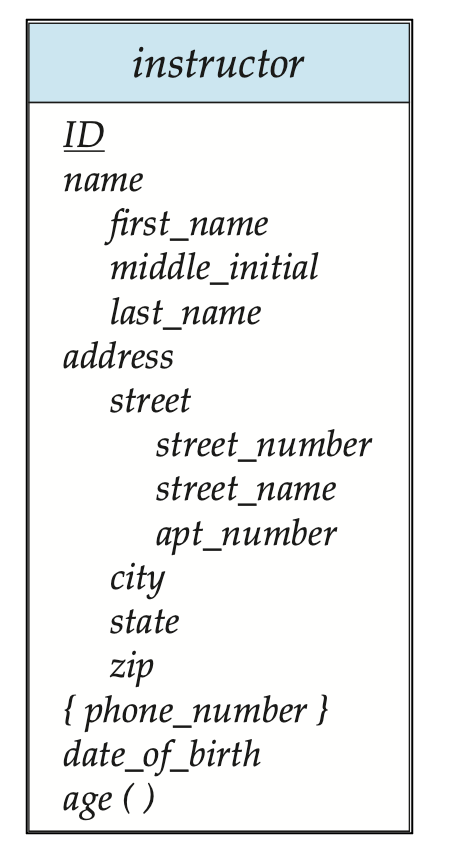

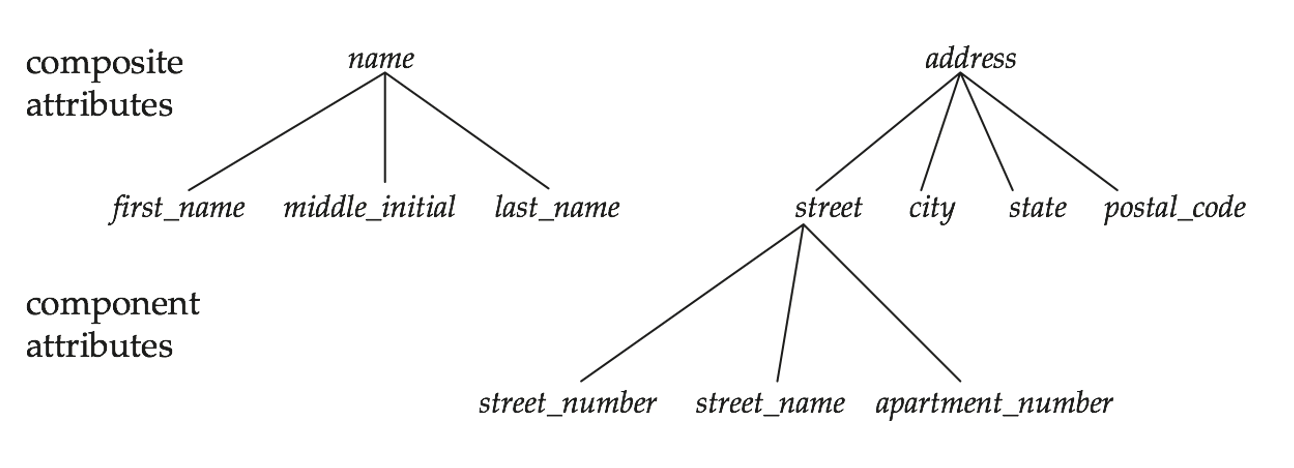

直接把复合属性拆开，多值属性新开一个表。

SQL
1
instructor(ID, first_name, middle_name, last_name, street_number, street_number, apt_number, city, state, zip_code, date_of_birth, age)

多值属性比如 phone_numbers，新开一个表 inst_phone。


inst_phone = (ID, phone_number)

Special case

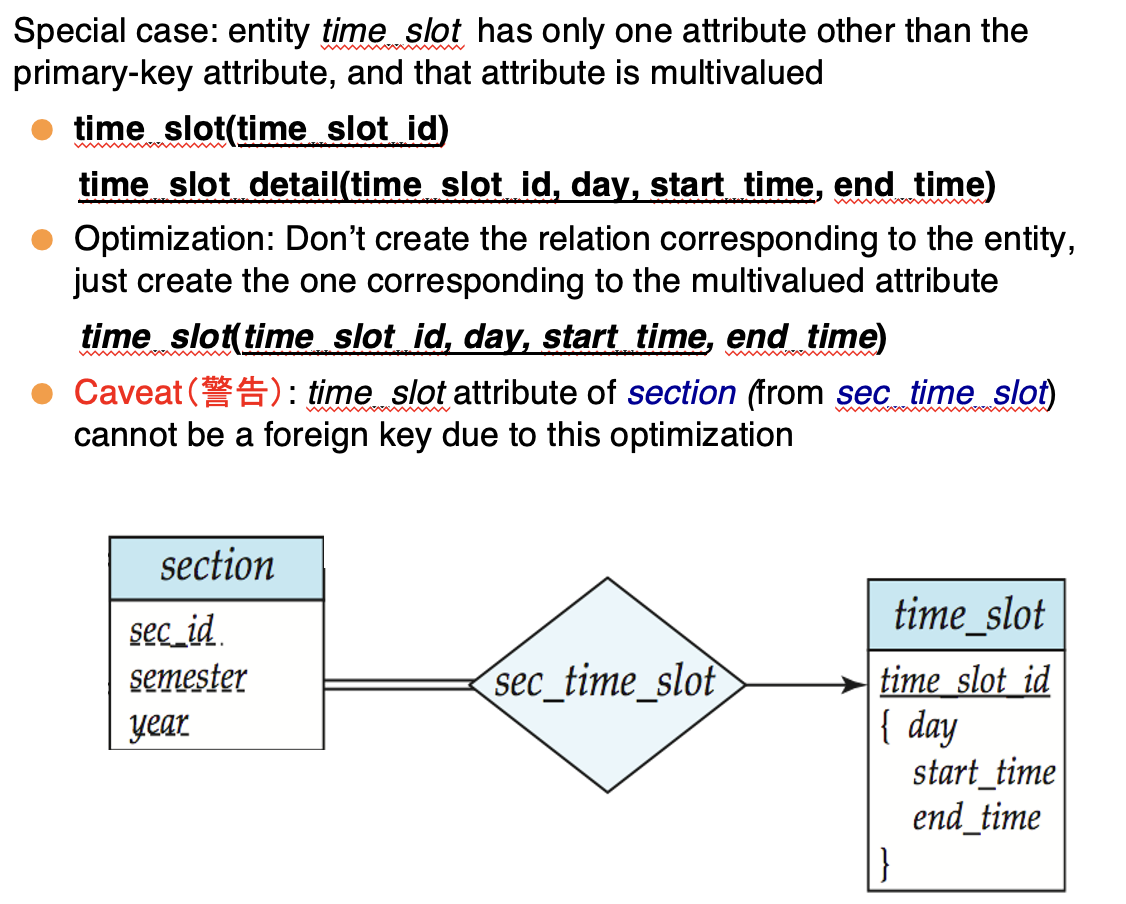

好处：可以定义外键了，之前的 time_slot 是无法定义外键的。

坏处：多了一个表，查询的时候需要多次查询

Design Issues

Common Mistakes in E-R Diagrams

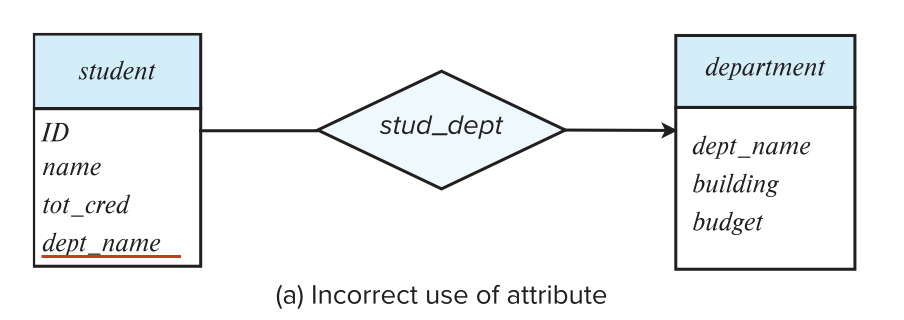

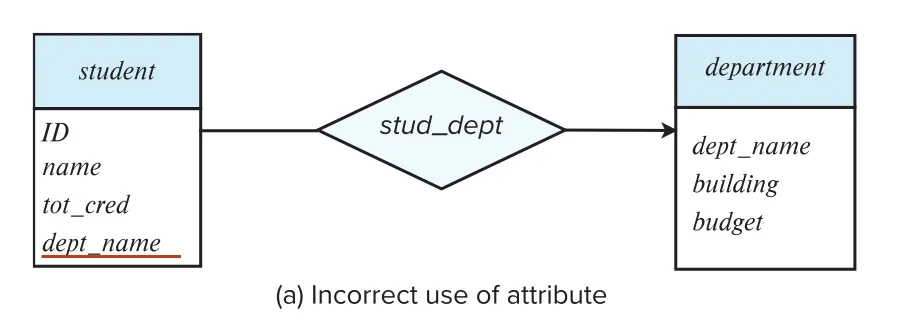

信息冗余，dept_name 在 department 和 student 中都有，这样就会造成冗余。应该把 student 中的 dept_name 去掉。

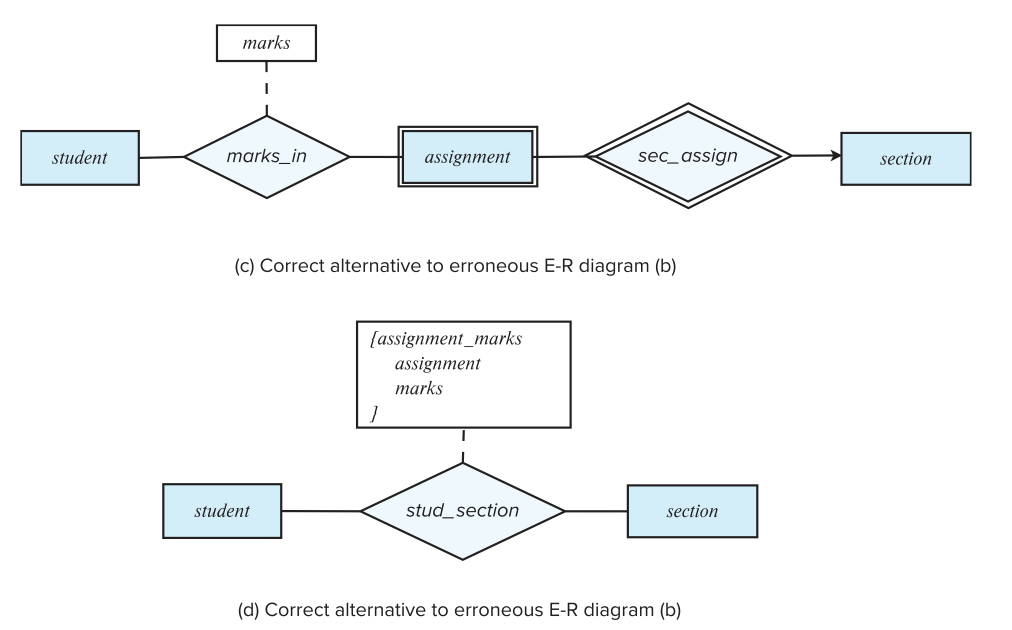

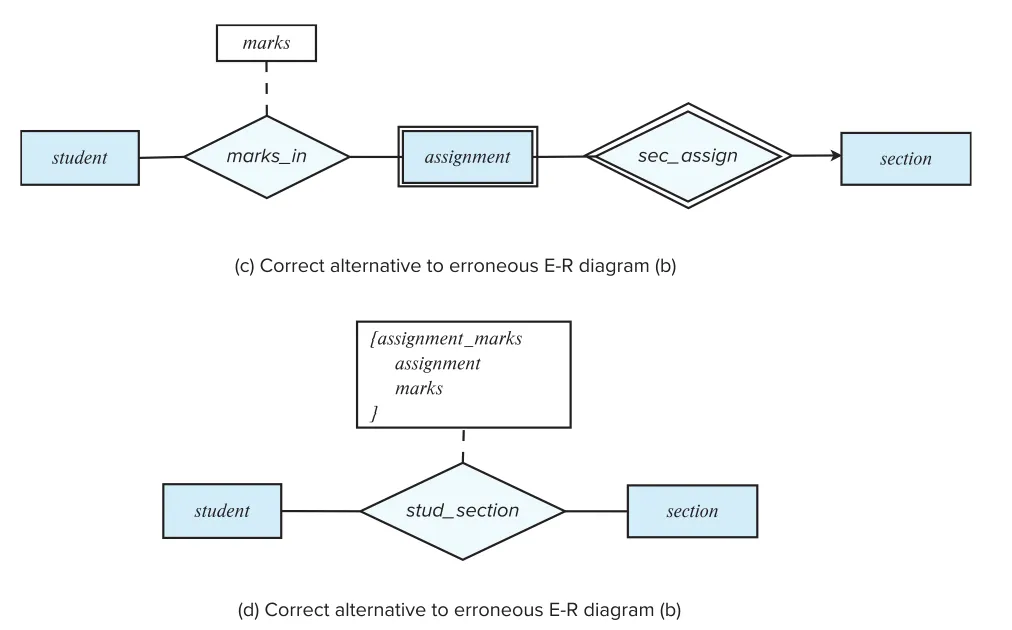

一门课会有多个作业，不能只用一个实体表示。

解决办法：

Use of Entity Sets vs. Attributes

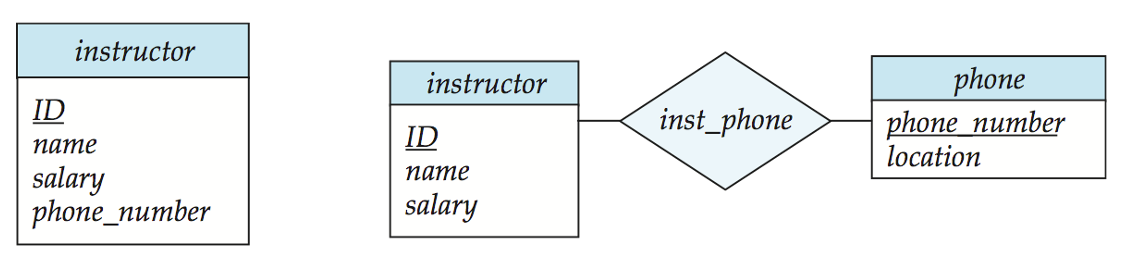

  • 第一种方法，删除多余的电话号码，明确每个人只有一个电话号码
  • 第二种方法，电话号码附带更多属性，一个电话可以有多人共享（比如办公室的电话）

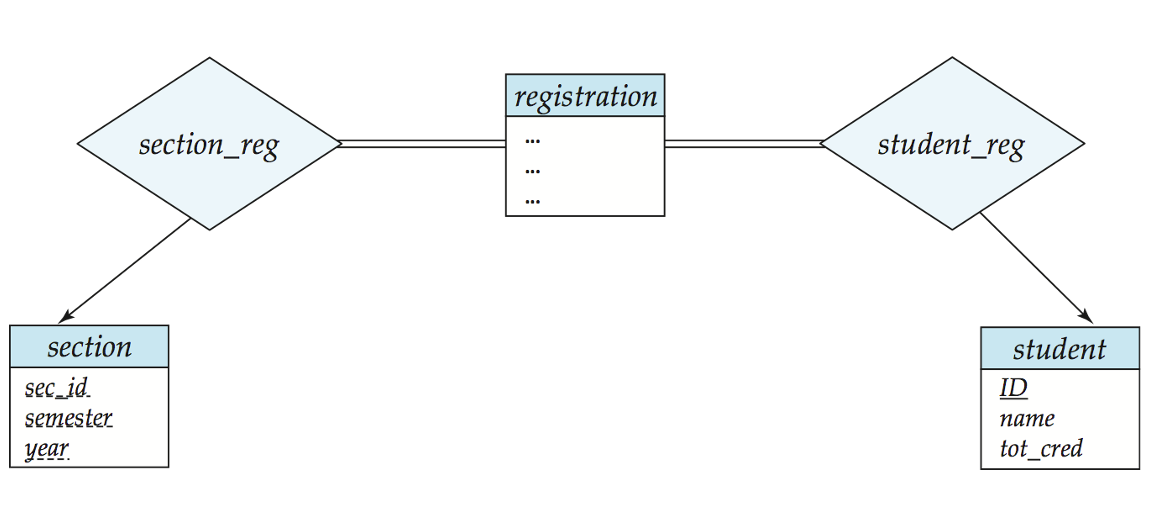

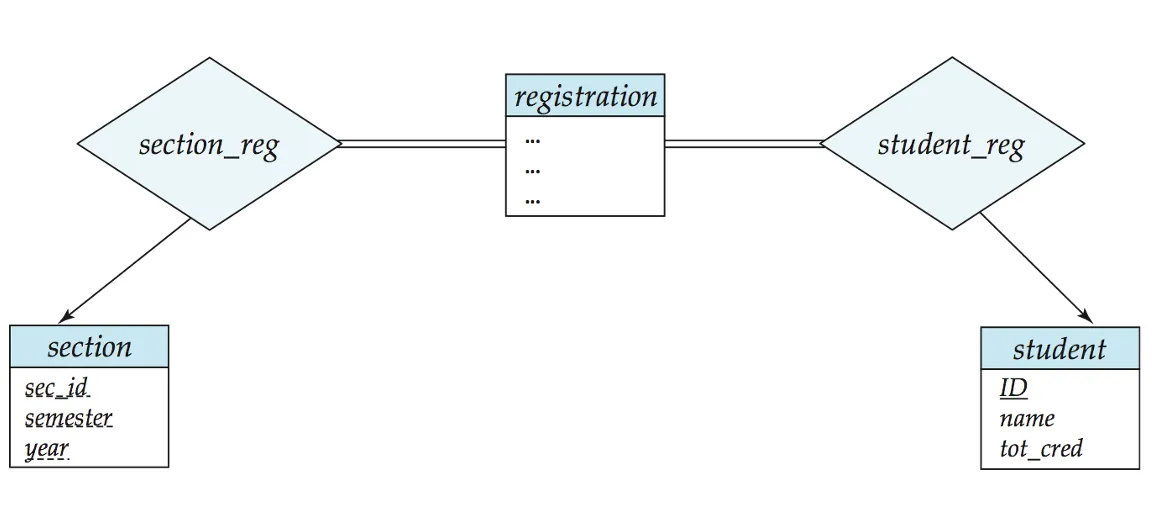

Use of Entity Sets vs. Relationship Sets

Possible guideline is to designate a relationship set to describe an action that occurs between entities

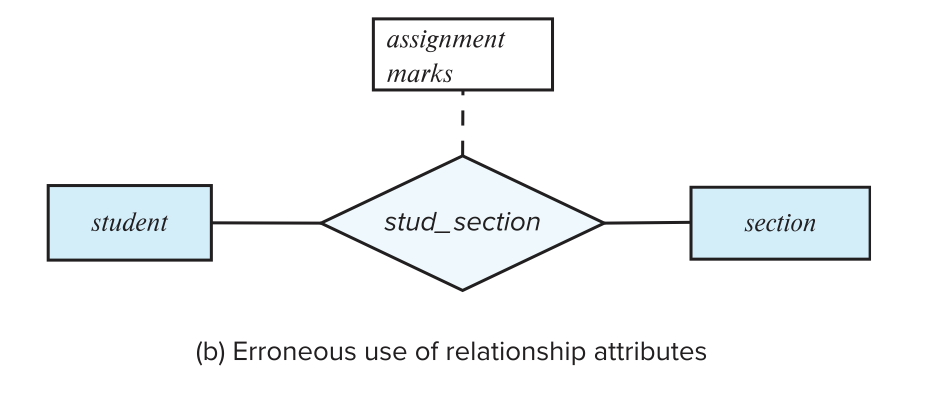

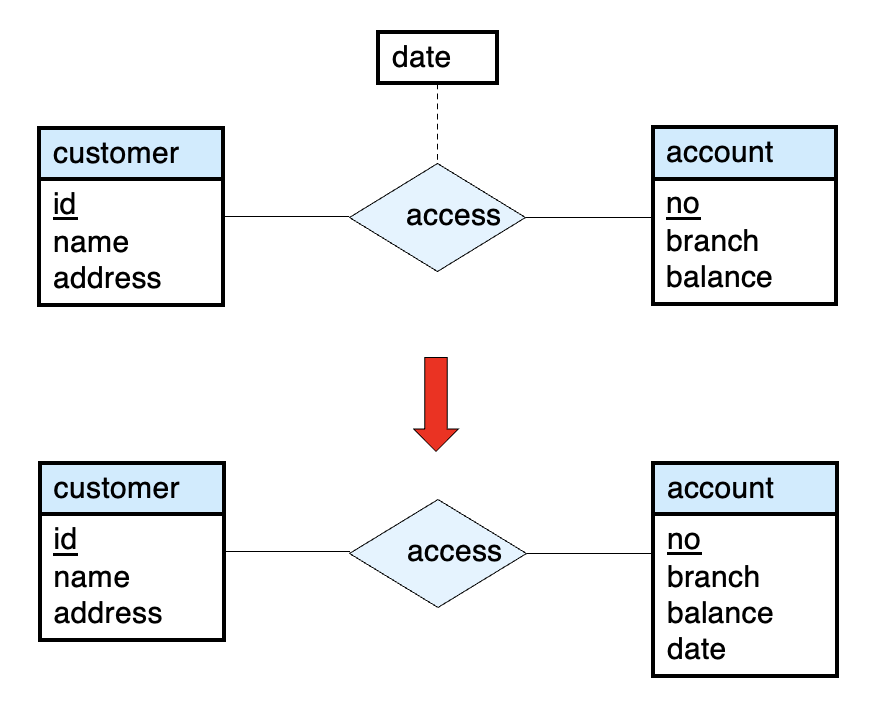

Placement of relationship attributes

Extended E-R Features

  • Specialization(特化)
    • Top-down design process; we designate sub-groupings within an entity set that are distinctive from other entities in the set
    • Attribute inheritance(属性继承) - a lower-level entity set inherits all the attributes and relationship participation of the higher-level entity set to which it is linked.
  • Generalization(概化)
    • Bottom-up design process - combine a number of entity sets that share the same features into a higher-level entity set
