Transaction

约 2037 个字 -5 行代码 19 张图片 预计阅读时间 7 分钟

Note

Outline:

  • Transaction Concept
  • A Simple Transaction Model
  • Concurrent Executions
  • Serializability
  • Recoverability
  • Transaction Isolation Level
  • Transaction Definition in SQL

Transaction Concept

  • A transaction is a unit of program execution that accesses and possibly updates various data items.
  • E.g. transaction to transfer $50 from account A to account B
SQL
1
2
3
update account set balacne = balance - 50 where account_number = A;
update account set balance = balance + 50 where account_number = B;
commit;
  • Two main issues to deal with:
    • Failures of various kinds, such as hardware failures and system crashes. 各种故障，如硬件故障和系统崩溃
    • Concurrent execution of multiple transactions. 多个事务的并发执行

ACID Properties

  • Atomicity(原子性). Either all actions of the transaction are executed, or none are. 事务中的所有操作要么都执行，要么都不执行。
  • Consistency(一致性). Execution of a transaction in isolation preserves the consistency of the database. 隔离执行的事务保持数据库的一致性，即事务执行后数据库的状态是正确的。
  • Isolation(隔离性). 多个事务的并发执行互不干扰。
  • Durability(持久性). After a transaction completes successfully, the changes it has made to the database persist, even if there are system failures. 事务完成后，即使系统崩溃，事务对数据库的修改仍然保持。

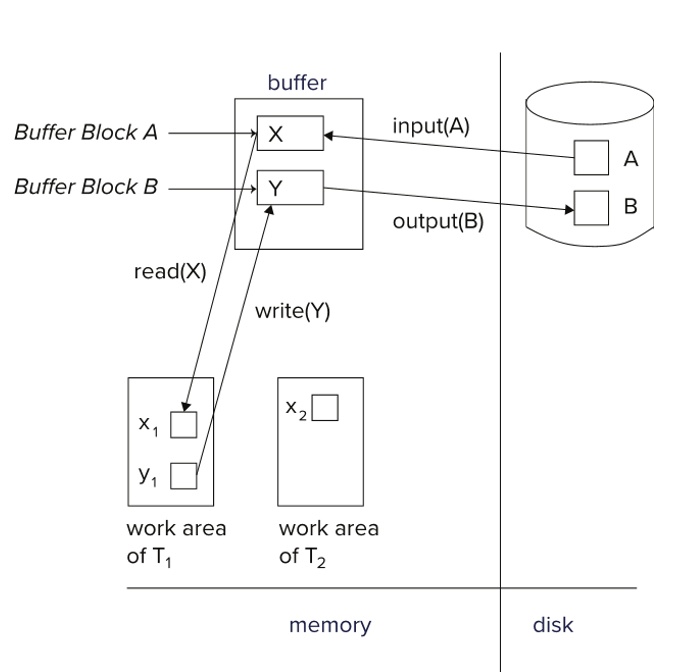

A Simple Transaction Model

我们简单地把事务的操作分为两类：

  • Read(x), which transfers the data item x from the database to a variable, also called x, in a work area in main memory belonging to the transaction that executed the read operation. 读的可以是一个记录，一个表，或者一个属性等。
  • Write(x), which transfers the value of x in the main memory work area of the transaction that executed the write operation to the data item in database.

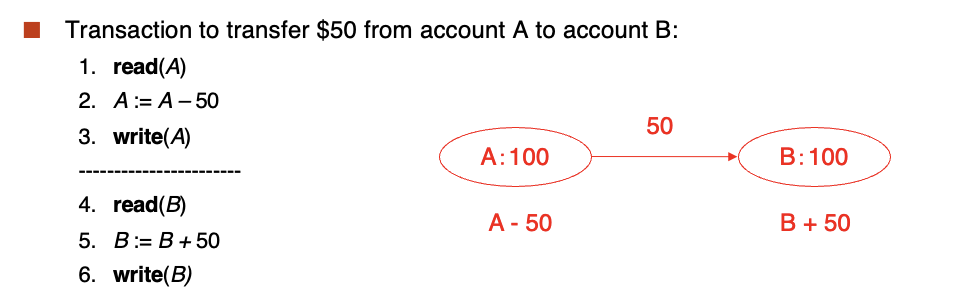

Example of Fund Transfer

  • Atomicity requirement
    • If the transaction fails after step 3 and before step 6, money will be "lost" leading to an inconsistent database state.
      • Failure could be due to software or hardware
    • The system should ensure that updates of a partially executed transaction are not reflected in the database.
    • 如果在第3步和第6步之间发生故障，系统应该确保部分执行的事务的更新不会反映在数据库中。即如果执行出了问题，数据库要撤销之前的操作。
  • Durability requirement
    • 如果事务结束了，系统应该确保即使在系统崩溃的情况下，事务的更新也会被保留。
  • Consistency requirement in above example:
    • the sum of A and B is unchanged by the execution of the transaction.
    • Explicitly(显式) specified integrity constraints, e.g. primary keys, foreign keys. 数据库把定义放在内部，自己维护。
    • Implicit(隐式) integrity constraints, e.g. balance >= 0. 数据库不维护，用户自己维护。
  • Isolation requirement. 如果在第3步和第6步之间，另一个事务访问了这个数据库，那么它会看到 \(A + B\) 小于正确答案，这是因为没有保证隔离性。

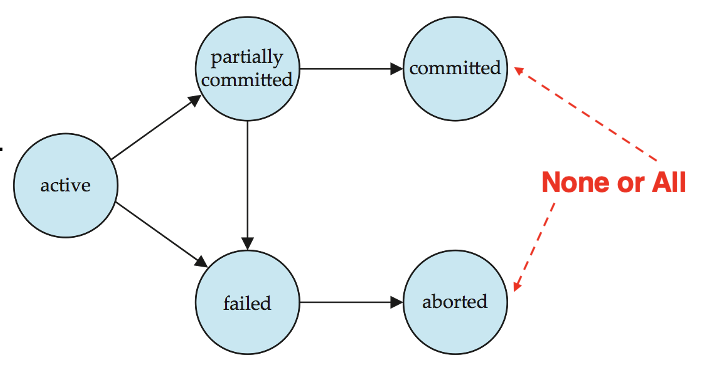

Transaction State

  • Active - the initial state; the transaction stays in this state while it is executing.
  • Partially committed - after the final statement has been executed.
  • Failed - after the discovery that normal execution can no longer proceed.
  • Aborted - after the transaction has been rolled back and the database restored to its state prior to the start of the transaction. Two options after it has been aborted:
    • Restart the transaction, which will be rolled back and restarted.
    • Kill the transaction, which will not be restarted.
  • Committed - after successful completion.

Concurrent Executions

  • Multiple transactions are executed at the same time. Advantages:
    • Increased processor and disk utilization, leading to better transaction throughput.
      • E.g. one transaction can be using the CPU while another is reading from or writing to the disk.
    • Reduced average response time for transactions: short transactions need not wait behind long ones.
Anomalies in concurrent execution:
  • Lost Update(丢失修改)

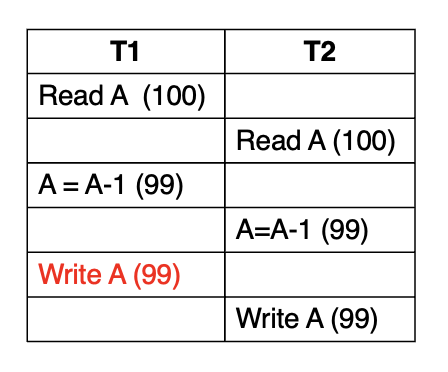

Lost Update

如图所示，T1和T2都读取了A的值，然后分别对其进行了修改。由于T1在T2之前提交，因此T1的更新被丢失了。

  • Dirty Read(读脏数据)

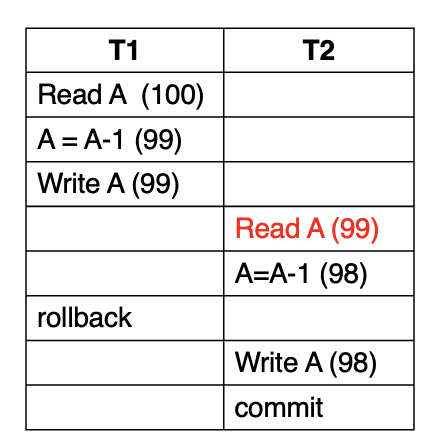

Dirty Read

如图所示，T1 读取了 A 的值，然后对其进行了修改。由于 T2 读取 A 的值之后，T1 又执行了 rollback 操作，因此 T2 读取的 A 的值是脏数据。

  • Unrepeatable Read(不可重复读)

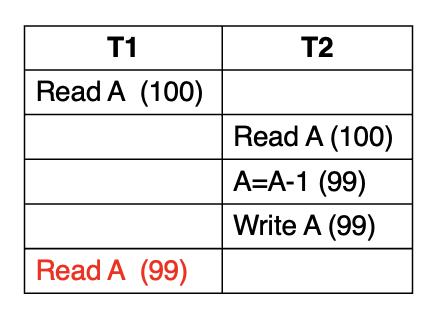

Unrepeatable Read

由于 Isolation, 我们要求 T1 前后读取的 A 的值是一样的。上图中，T1 在读取 A 的值后，T2 修改了 A 的值并提交了，因此 T1 读取的 A 的值不一致。

  • Phantom Problem(幽灵问题)

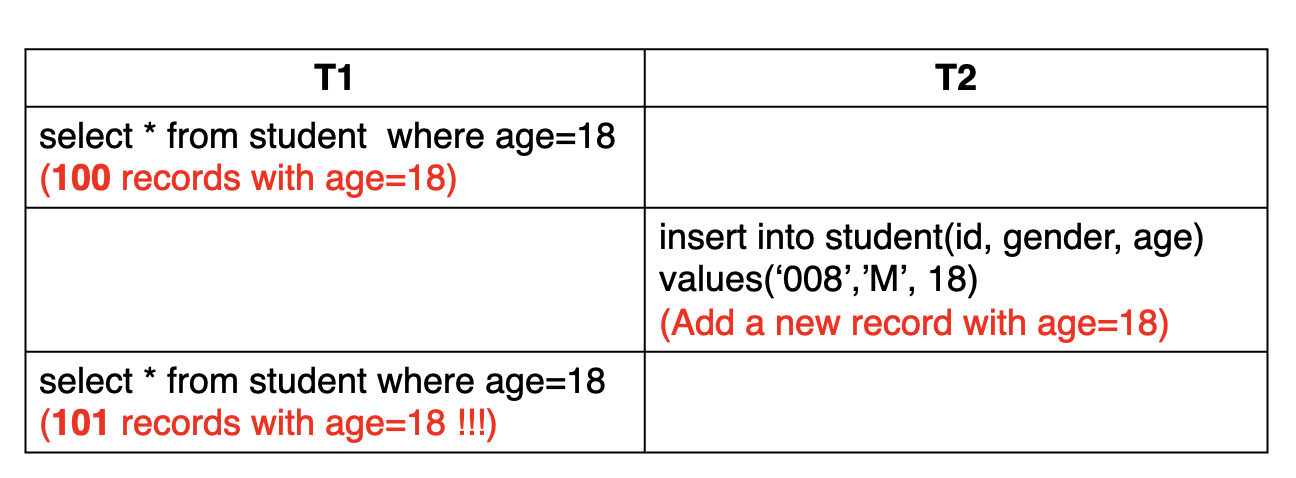

Phantom Problem

如图所示，T1 在读取之后， T2 插入了一条新的记录。由于 T1 读取的范围是 age = 18，因此 T1 读取的结果不一致。

Schedules

Schedule - a sequencess of instructions that specify the chronological order in which instructions of concurrent transactions are executed. 事务的执行顺序。

Example of Schedule

串行调度。 T1 transfer $50 from A to B, and T2 transfer 10% of the balance from A to B.

串行调度。 这次是 T2 先执行，然后是 T1。

交错执行，但是等价于 Schedule 1。 这两个调度的结果是一样的。

交错执行，但是不等价于 Schedule 1。 这两个调度的结果是不一样的。破坏了隔离性。

Serializability(可串行化)

  • A (possibly concurrent) schedule is serializable if it is equivalent to a serial schedule.
  • Different forms of schedule equivalence give rise to the notions of:
    • conflict serializability(冲突可串行化)
    • view serializability(视图可串行化)

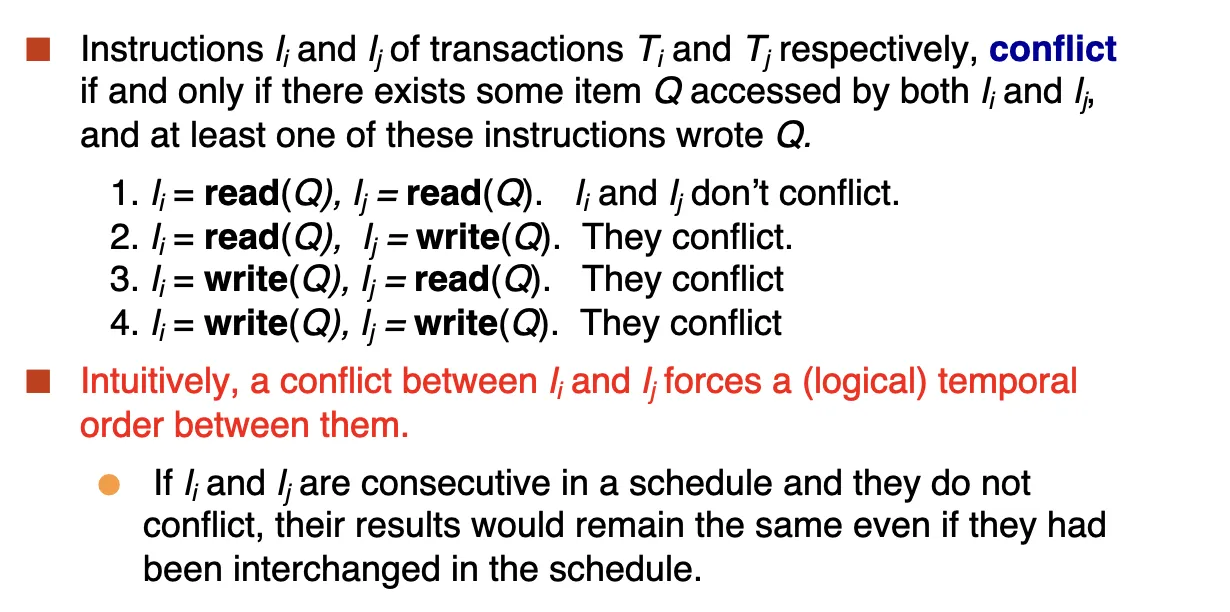

Conflicting Instructions

先读后写，先写后读，先写后写都会导致冲突，可以类比 CPU 中的 read-after-write, write-after-read, write-after-write。 但是读和读之间没有冲突。

  • If a schedule \(S\) can be transformed into a schedule \(S'\) by a series of swaps of non-conflicting instructions, we say that \(S\) and \(S'\) are conflict equivalent.
    • 如果一个调度 \(S\) 可以通过一系列非冲突指令的交换转换为调度 \(S'\)，我们说 \(S\) 和 \(S'\) 是冲突等价的。
  • We say that a schedule \(S\) is conflict serializable if it is conflict equivalent to a serial schedule.
    • 我们说一个调度 \(S\) 是冲突可串行化的，如果它与一个串行调度冲突等价。

Testing for Serializability

  • Consider some schedule of a set schedule of a set of transactions \(T_1, T_2, \ldots, T_n\).
  • Precedence graph(前驱图) - a directed graph where the vartices are the transactions (names).

如果 T1 和 T2 之间有冲突，那么它们之间有一条边。比如，如果 T1 先执行，它和 T2 有冲突，就有一条边从 T1 指向 T2。如果最终的图是无环的，那么这个调度是可串行化的。否则就是不可串行化的。

如果可串行化，我们就需要用拓扑排序来找出一个可串行化的调度。

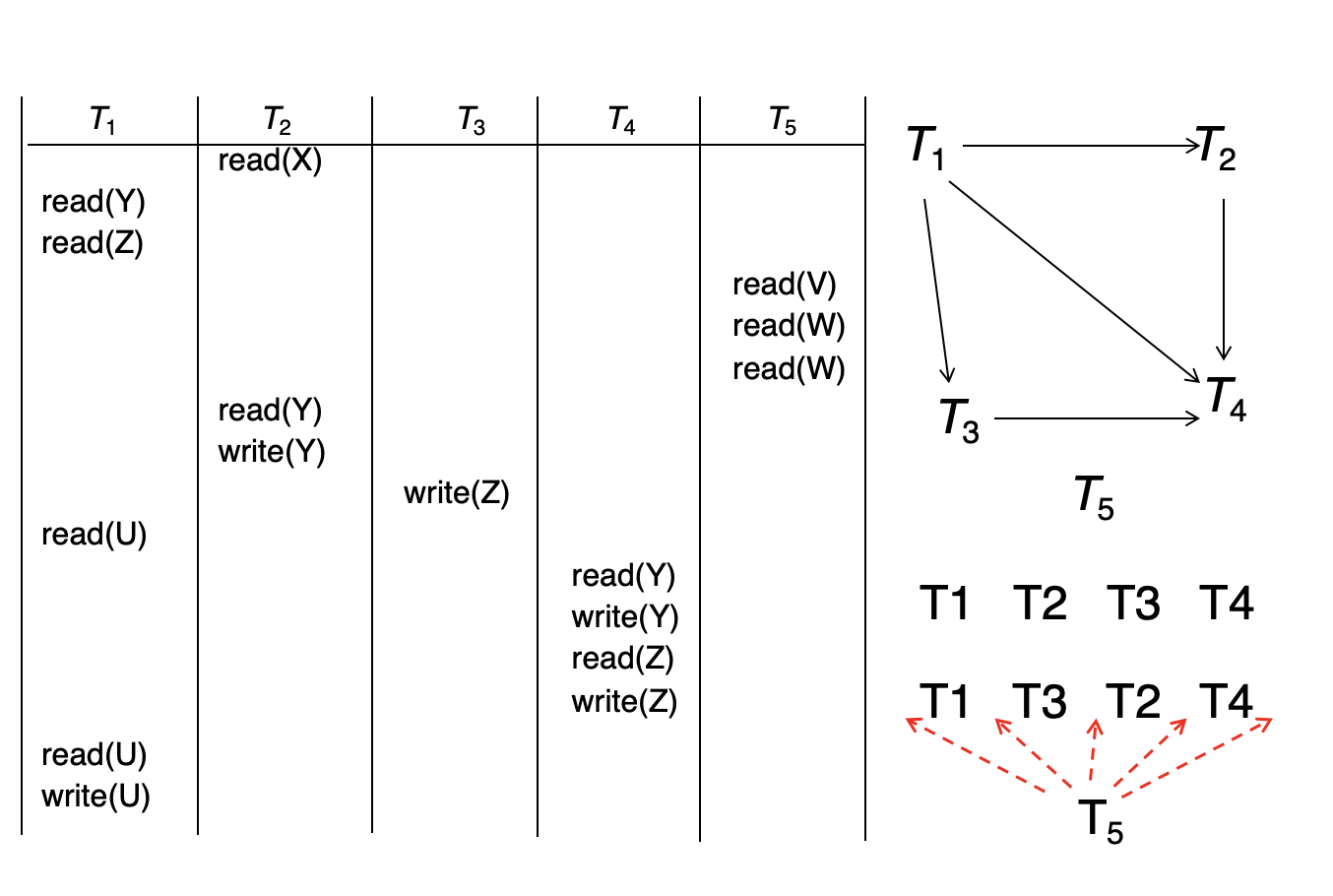

我们最终得到右上方的前驱图，根据拓扑排序得到一共 \(2 * 5 = 10\) 种可串行化的调度。

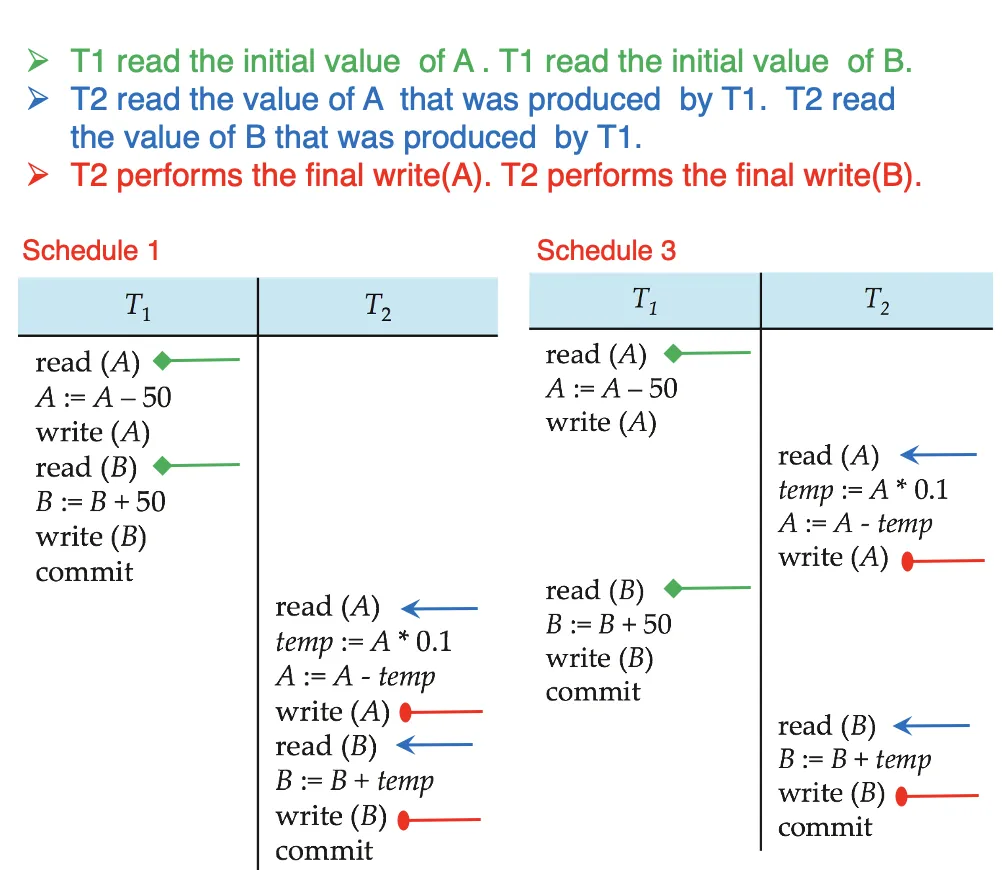

Different forms of Serializability

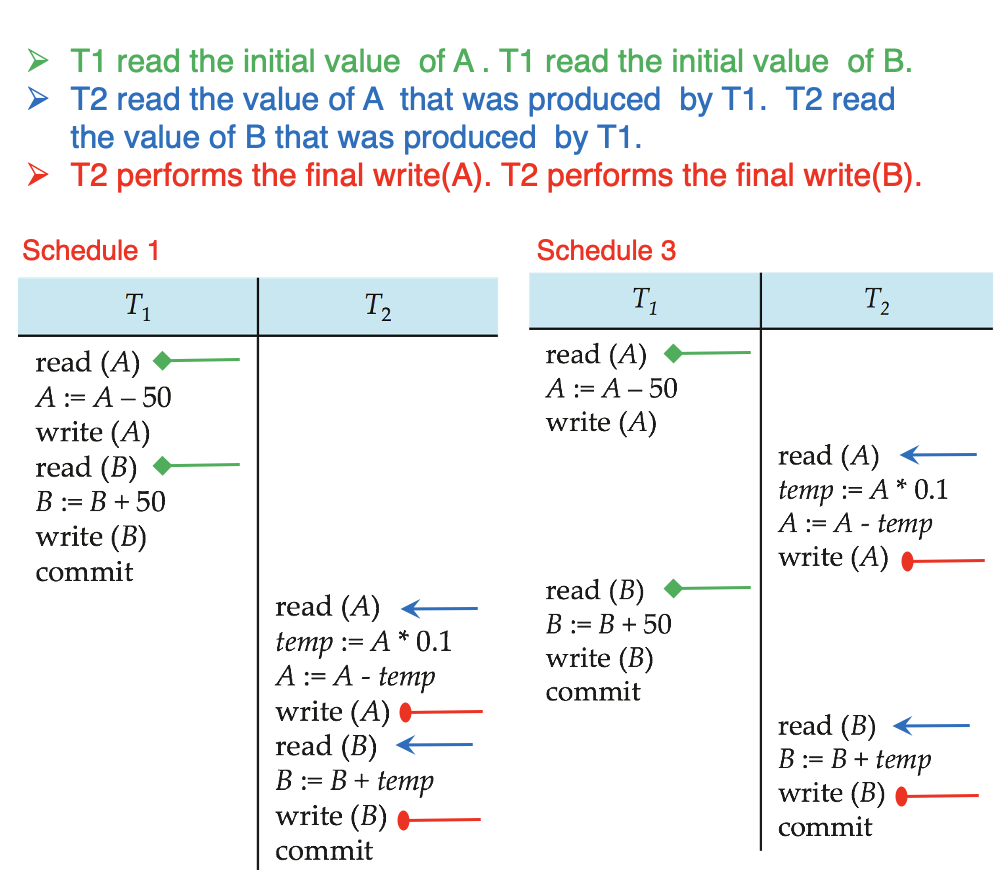

  • Conflict serializability(冲突可串行化): same order of the conflict operation pairs.
  • View serializability(视图可串行化):
    • Same data content of the corresponding read (\(Q\)) operations.
    • Same data content (\(Q\)) of the final write (\(Q\)) operations.

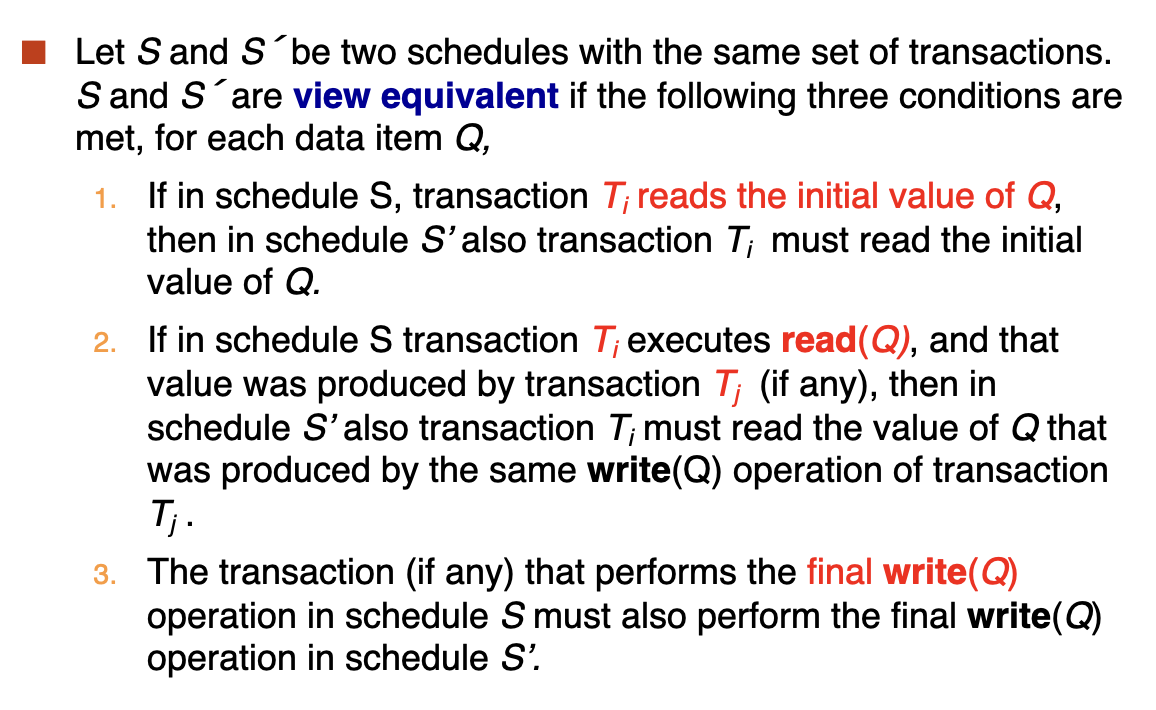

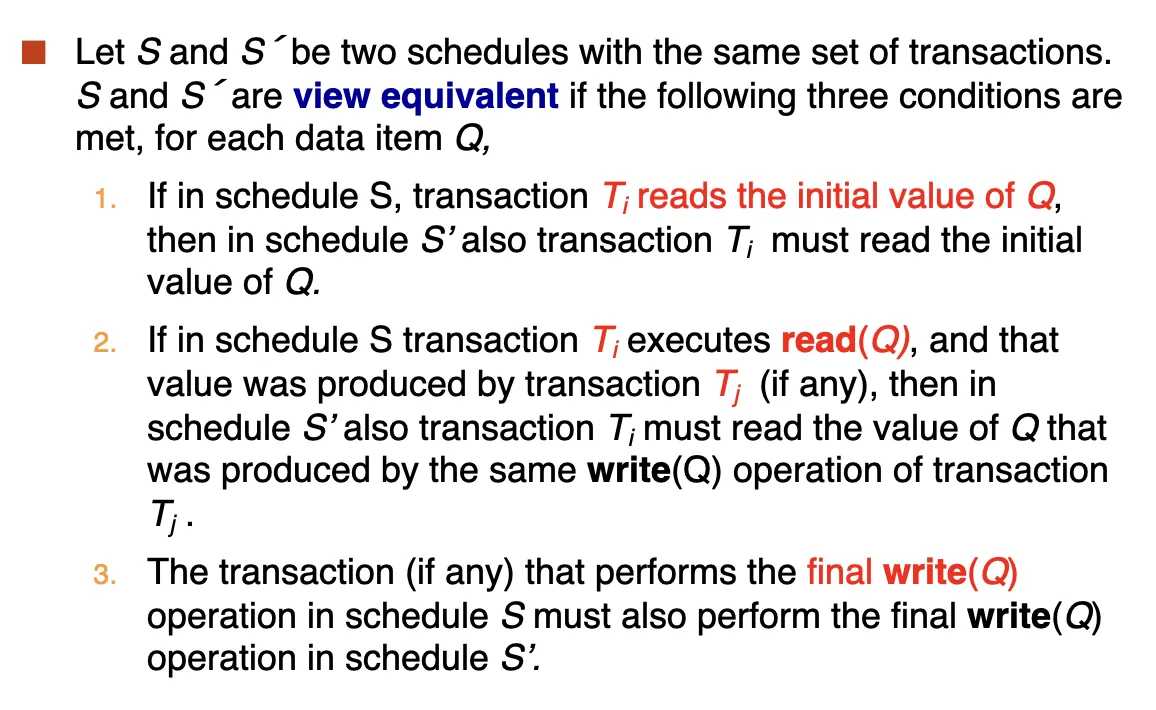

View Serializability

初始值由同一个事务读取，最终写会的结果由同一个事务写入。

冲突可串行化都是视图可串行化，但是视图可串行化不一定是冲突可串行化的。

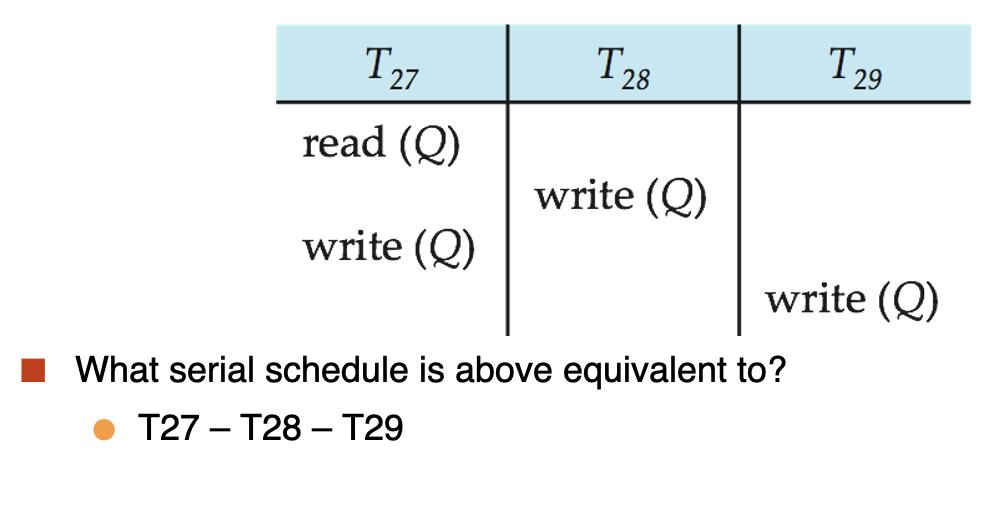

Example

如图所示，上图等价于 \(T27-T28-T29\)，但是它不是冲突可串行化的。因为 \(T27\) 和 \(T28\) 之间有冲突。

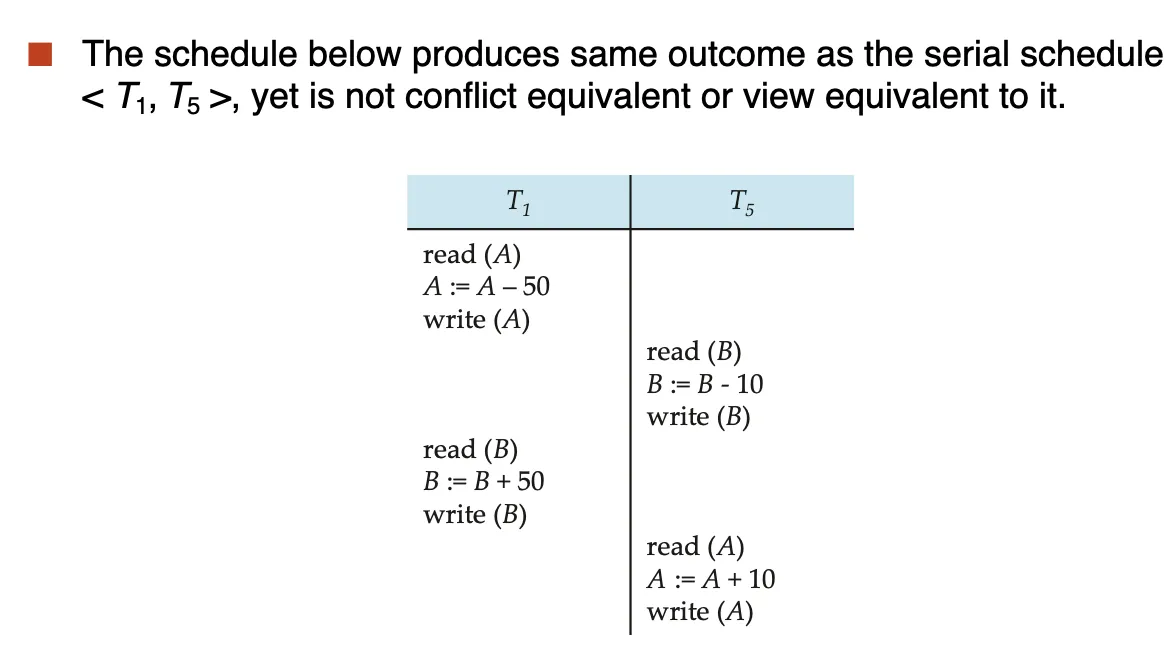

Other Notions of Serializability

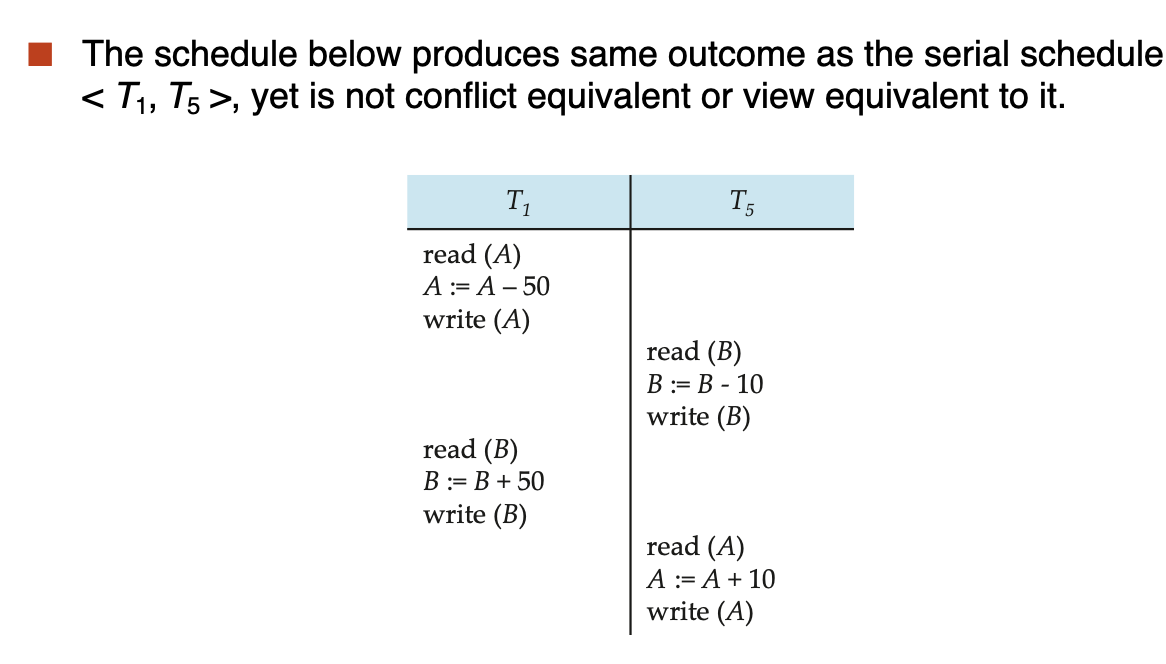

有些调度既不是冲突可串行化的，也不是视图可串行化的，但是它是可串行化的：

如图，这个调度不满足冲突可串行化和视图可串行化，但是它是可串行化的，因为由数学定理 \((B-10)+50 = (B+50)-10\)，所以我们可以更换顺序。

Recoverable Schedules

Recoverable schedule(可恢复调度) - if a transaction \(T_j\) reads a data item previously written by a transaction \(T_i\), then the commit operation of \(T_i\) appears before the commit operation of \(T_j\). 如果事务 \(T_j\) 读取了一个数据项，而这个数据项是事务 \(T_i\) 写的，那么 \(T_i\) 的提交操作必须在 \(T_j\) 的提交操作之前。

Example

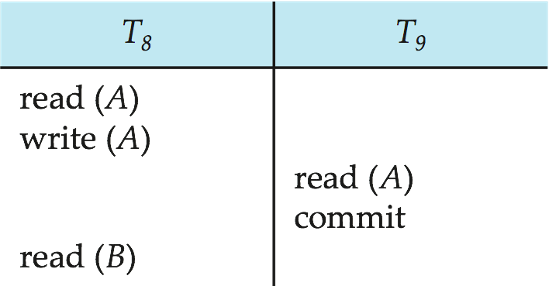

The following schedule is not recoverable if \(T_9\) commits immeiately after the read.

如果 \(T_8\) 回滚，但是 \(T_9\) 提交了，那么 \(T_9\) 读取的值是脏数据，这个调度是不可以恢复的。

Cascading Rollbacks

级联回滚 - a single transaction leads to a series of rollbacks.

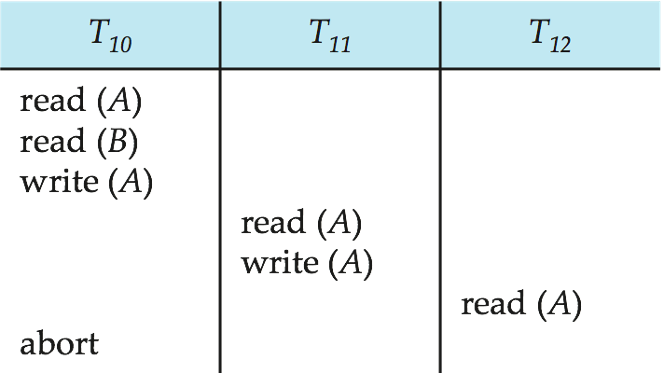

If \(T_10\) falls, \(T_11\) and \(T_12\) must also be rolled back.

Transaction Isolation Level

  • Serializable - default。 避免上述提到的四种问题，开销大。
  • Repeatable read - only committed records to be read, repeated reads of same record must return same value. However, a transaction may not be serializable - it may find some records inserted by a transaction but not find others. 不管幽灵问题。
  • Read committed - only committed records can be read, but successive reads of record may return different(but committed) values. 保证不读脏数据。
  • Read uncommitted - even uncommitted records can be read. 最宽松的隔离级别，通常在做统计的时候用。

在数据库中，我们可以自己设定隔离等级。

SQL
1
2
In SQL: set transaction isolation level <serializable>;
In JDBC: connection.setTransactionIsolation(Connection.TRANSACTION_SERIALIZABLE);
